Coursing Patterns

JSP Thin Veneer & Full Dimensional
Coursing Patterns for Texas

Ashlar (Sawn Top and Bottom) – Equal Mix of Nominal 4”, 6” & (customer’s choice)8” or 8.5” w/ snapped ends
Quarry Chop – Nominal Height Range 4” – 8” rough chop

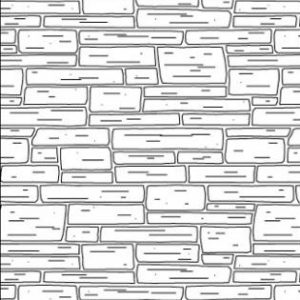

Ledgestone – Nominal Heights 2” & 4” with snapped ends

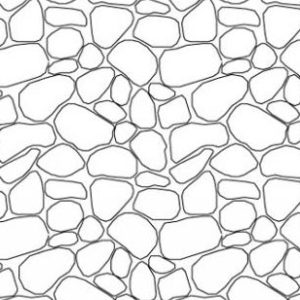

Mosaic- Nominal Height Range 3” – 12” irregular shapes
3-Unit – Nominal Heights 2.25”(20%), 5”(50%) and 7.75”(30%)
2.25” – Nominal Height is 2.5” with snapped ends

JSP Thin Veneer Coursing Patterns for Oklahoma

Chopped – Nominal Height Range 4” – 8” rough chop
Mosaic – Nominal Height Range 3” – 12” Irregular Shapes
Ledge Chopped – Nominal Heights 2”, 4” Snapped Ends
Squares & Recs – Nominal Height Range 4” – 12” rough chop
Ledgestone 2”4”6” – Sawn top & bottom, sawn back
Natural 2 Sides – Sawn top & bottom, back not sawn

JSP Full Dimensional Coursing Patterns for Oklahoma

Ashlar – Nominal Height Range 4” – 8”, sawn top & bottom, 3”-5” thick
Quarry Chopped – Nominal Height Range 4” – 8”, rough chop, 3”-5” thick
Builders – Nominal Height Range 10” – 14”, irregular Shapes, 3”-5” thick
Ledge Chopped – Nominal Heights 2”-4”, snapped ends, 2”-3” thick
Squares & Recs – Nominal Height Range 4” – 12”, rough chop, 2”-3” thick, 3”-5” thick
